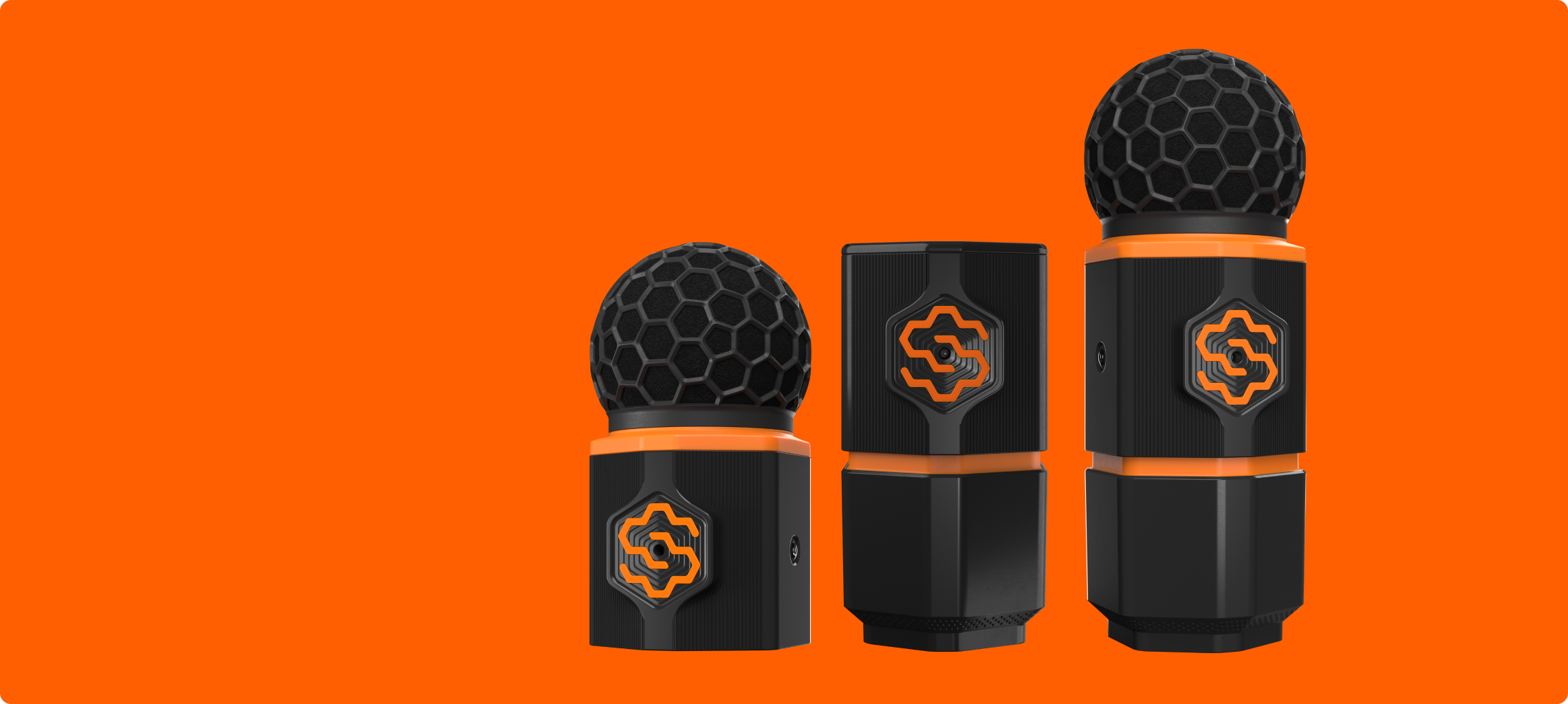

SiteHive Hexanode Noise, Dust, & Noise+Dust

Guide for different configurations:

With Lithium battery set up & Lead acid battery setup

With Pole Mount

Solar stand setup: Hexanode Noise, Dust, & Noise+Dust

Watch video for solar stand setup. Steps 5 & 6 in the video show differences between lithium and lead-acid batteries.

Steps

Lift Solar Panel - Lift the solar panel and tighten screws via 45° bracket
Connect bottom upright - Attach the bottom upright pole via the corner bracket to the base and attach 45° bracket to solar panel
Connect top upright - Connect the top upright pole via straight brackets
Connect Hexanode - Unscrew thread from the bottom of the Hexanode Device. Insert screw through the bottom of L bracket and into the Hexanode
Connect battery, load and mount battery - Connect battery to lithium battery. Connect load cable to Hexanode Device. Place battery under the solar panel or mount to the base.
Check Hexanode Device is on - Observe the flashing LED light coming from the LED light from the centre of the SiteHive Logo: 🟢 Power on and making comms connection, 🔵 Power on and can't make comms connection.

Watch video for solar panel with pole mount.

Steps

Remove solar panel from base frame - Loosen the screws
Remove the side pole from frame and re-attach to panel
Remove the angle bracket and attach it to mounting pole
Mount the solar panel
Mount the frame on the fence or pole - Zip ties can be used
Mount and connect the battery
Mount the Hexanode Device
Orientate the Hexanode Device for camera coverage - Each camera has a 160° view
Connect power to the Hexanode Device
Check Hexanode Device is on - Observe the flashing LED light coming from the LED light from the centre of the SiteHive Logo: 🟢 Power on and making comms connection, 🔵 Power on and can't make comms connection
